Rake Attachment for 10,000-15,000 lb Excavators

This heavy-duty rake attachment is built for 10,000-15,000 lb (approx. 5-ton) class excavators. It is suitable for larger-scale site development, mine reclamation, riverbed cleaning, and subgrade preparation in road construction. The powerful excavator paired with the wide rake body allows for rapid processing of large land areas. We offer personalized customization services. If your required attachment dimensions differ from these standard specs, contact us before ordering for a tailor-made solution based on your excavator model.

Product Details:

• Compatibility: For 10,000-15,000 lb (approx. 5-ton) class excavators.

• Standard Specs: Pin Diameter: 45mm; Opening: 155mm; Centers: 260mm.

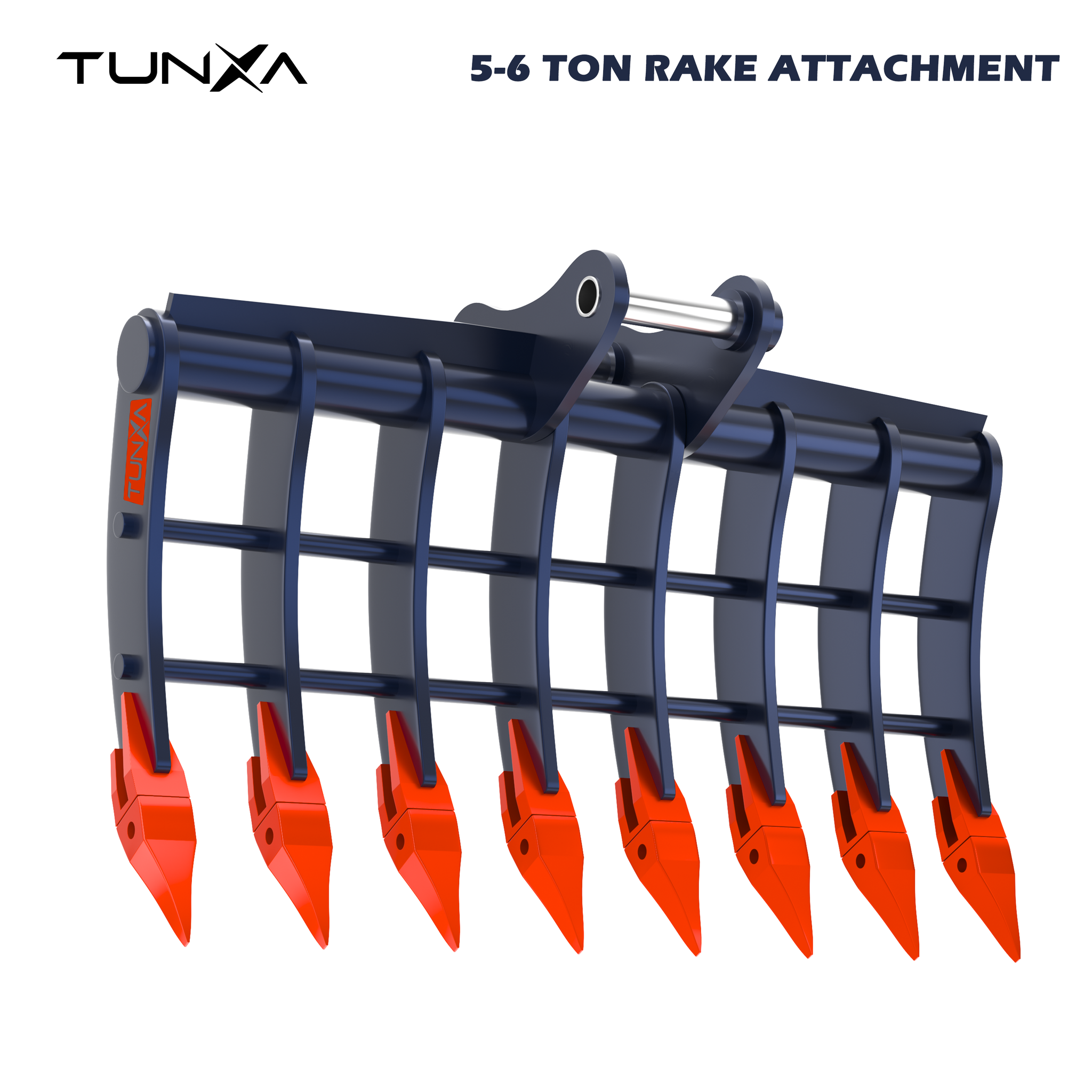

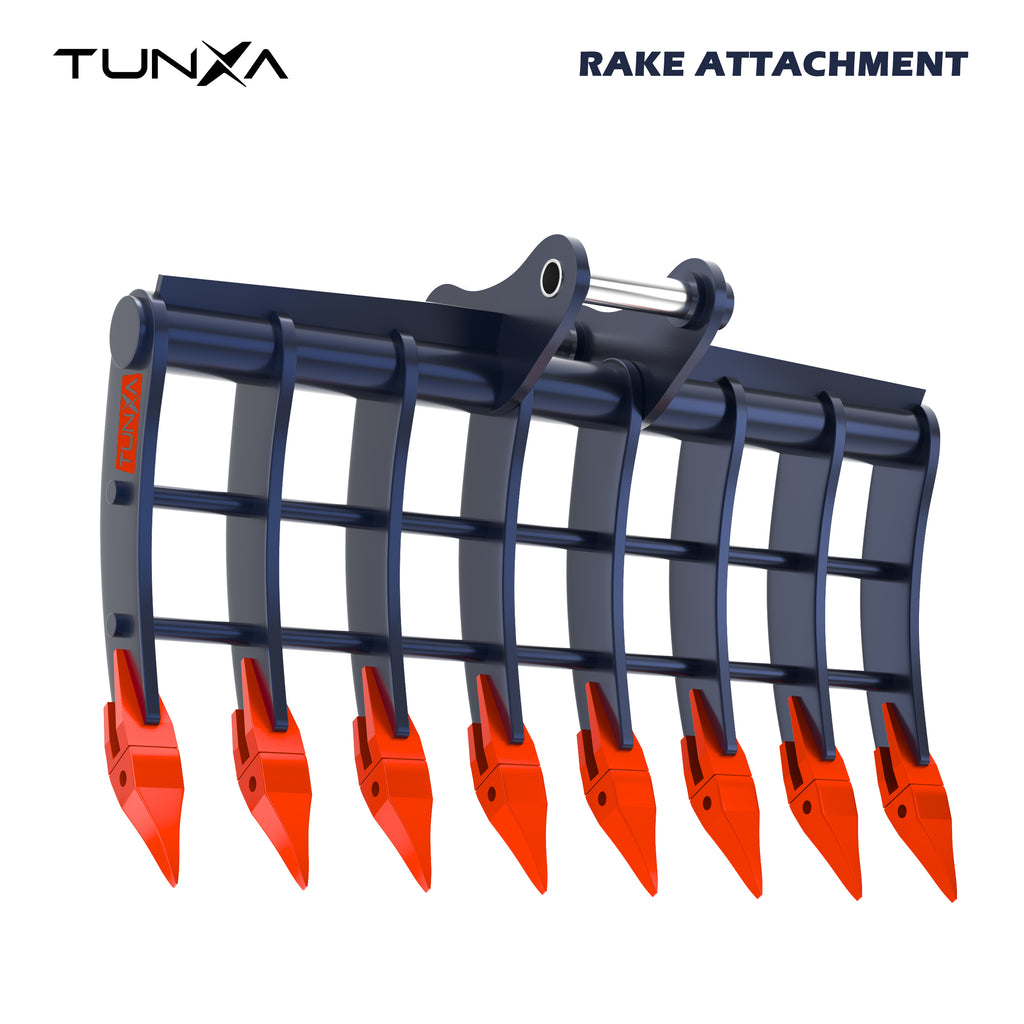

• Construction: Wide-body design covers a large area, boosting productivity. The entire structure utilizes a box-beam design for exceptional strength, capable of handling compacted soil and rocky conditions. Rake tines are specially heat-treated for superior wear resistance.

Order Custom Fit: Not sure if it fits? Simply provide your machine model and attachment dimensions, and we can manufacture it to your exact requirements.
